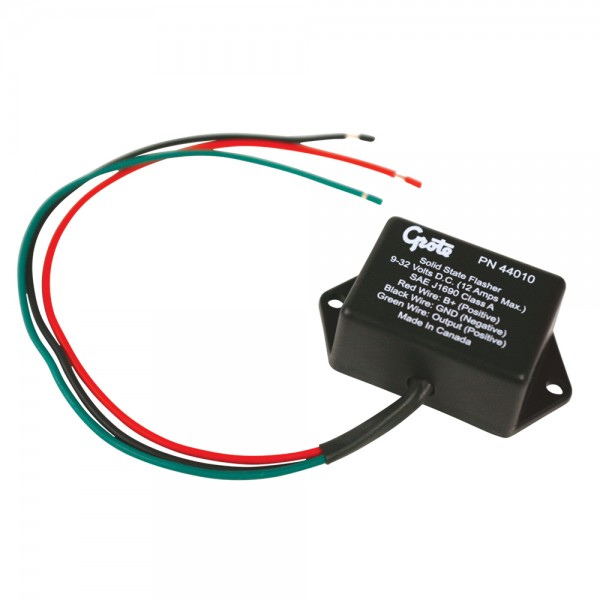

  • 3-wire Solid-State Electronic Flasher thumbnail

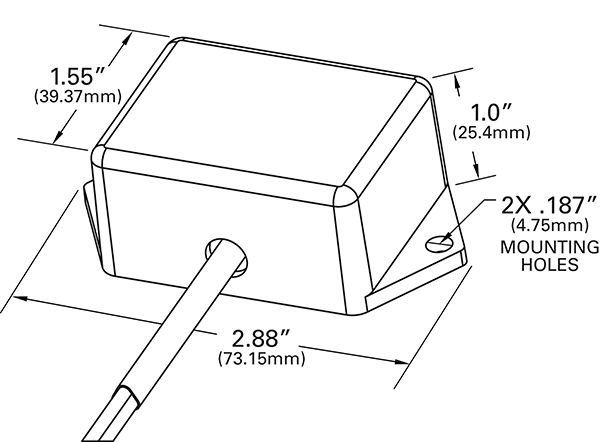

  • 44010 - drawing thumbnail

Vergleichen

0 Product Added

Vergleichen

Vergleichen Sie schnell bis zu 5 Produkte von Grote...

pdf spinner


Produktinformationen werden geladen

Loading, please wait

Bitte warten Sie einen Moment...

Fügen Sie weitere Produkte zum Vergleich hinzu.

Technische Spezifikationen
  • Material: ABS-Kunststoff
  • Farbe: Schwarz
  • Gehäusefarbe: Schwarz
  • Spannung: 12/24 V
  • Stromstärke: 12 A
  • Klasse: Klasse A
  • Drahtstärke: 18 AWG
  • Montageart: Oberfläche
  • Verbindungstyp: Stumpf geschnitten
  • Betriebstemperatur: -40 °C bis +50 °C
  • Höhe: 1,55"
  • Länge: 1 Zoll
  • Standards: J690
  • VMRS: 034-003-018
  • Produkttyp: Blinkgeber
  • Anzahl der Drähte: 3
  • Stil: Festkörper
  • Form: Rechteckig
  • Garantie: 1 Jahr
Eigenschaften & Vorteile
  • Entwickelt für die Verwendung mit LED-Beleuchtung
  • Vollvergossene, halbleiterbasierte Elektronik
  • Bietet eine gleichmäßige Blinkfrequenz bei jeder Last bis zu 12 Ampere.
  • Die selbstzurückstellende Funktion bietet internen Schutz gegen Kurzschlüsse.

Kundenbewertungen

  • 44010

    Washington State native: First I buy American made products; when after searching diligently I can't find what I'm after I look elsewhere. I discovered this 44010 flasher by Grote for use on my custom wired all LED dirt to street legal modified bike. I used and burned up two flashers that came with import bike part kits. This Grote flasher is bulletproof and stood up to some desert and street riding in 100+ degree temps in Baja California, Mexico. I converted my AC magneto power to AC only for ignition and 12V-15V DC for everything else. I will say without reservation, if this flasher has the wiring leads and voltage range you need don't *blink* about the price, just buy it and let your troubles fade away. The only change I would like to see is it made smaller/thinner as there is empty space in the housing that could probably go away. I was working with very little space.

    Michael J Aug 29, 2019
