DLQSMC Multi-Color Quick Stick
The DLQSMC Series Traffic Director offers versatile dual-color LED heads suitable for both interior and exterior mounting. Designed for emergency and utility vehicles, it features programmable flash patterns and optional functions to enhance visibility and safety. Ideal for mounting on front push bumpers, rear SUV or pickup truck windows, headache racks, and running boards.
DLQSMC-4-CUST10-16V DC
Vergleichen
0 Product Added
Technische Spezifikationen
- Current Draw: 1.5A @ 12V DC
- Spannung: 10-16V DC
- Gewicht: 7 lbs.
Eigenschaften & Vorteile
- Quickstick Traffic Director with Dual Color heads
- Weatherproof interior or exterior mount
- Thirty-six customer selectable warning flash patterns plus ten phase options and 13 Head Enable options
- Dual Warn option (eight head module only): programmable to allow the end heads to flash a warning pattern, while the center six heads flash a Traffic Director Pattern
- Self-contained ten pattern Traffic Director functionality (standard with six head and eight models, programmable for four head models)
- Includes a 25' 8-conductor harness: six and eight head models (Power, Ground, Warn Color 1, Warn Color 2, Left, Right, Cruise, and Programming), four head models (Power, Ground, Takedowns, Warn Color 1, Warn Color 2, Dual Color Warn, Cruise, and Programming)
- Optional functions for six and eight head models include Center Out, Takedowns, and Dual Color Flash
- Optional functions for four head models include Right, Left, and Center Out
- Bottom and rear T-slots allow for easy mounting via industry standard #10 carriage bolts
- Shipped standard with L-brackets
- Ability to reprogram most Enable wires to any desired function
- Ideal for front push bumpers, rear SUV or pickup truck windows, headache racks, and running boards
Zusätzliche Informationen
Model List
| Model | Description |
|---|---|

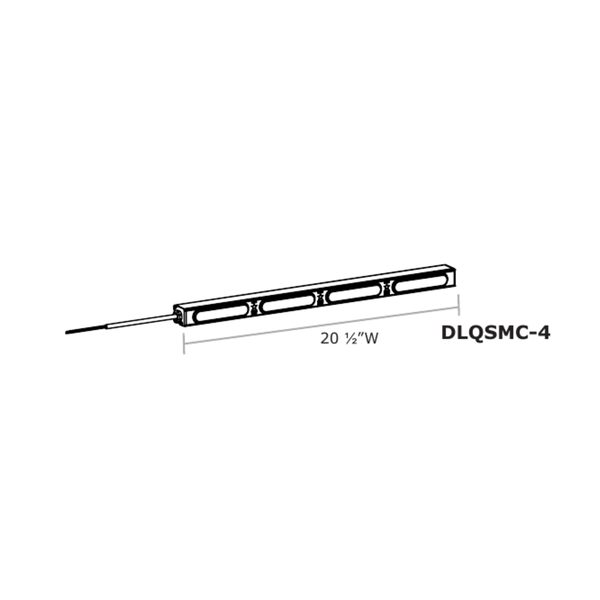

| DLQSMC-4 | 20.5" Four LED heads, with 8" wire leads |
| DLQSMC-6 | 30.6" Six LED heads, with traffic director function |
| DLQSMC-8 | 40.6" Eight LED heads, with traffic director function |
